Canyon Speedmax CF 7 Di2

Canyon Speedmax CF 7 Di2

$1,319.78 USD

~~$1,603.49 USD~~ $1,319.78 USD

Sale Sold out

Size: XS XS S M L XL

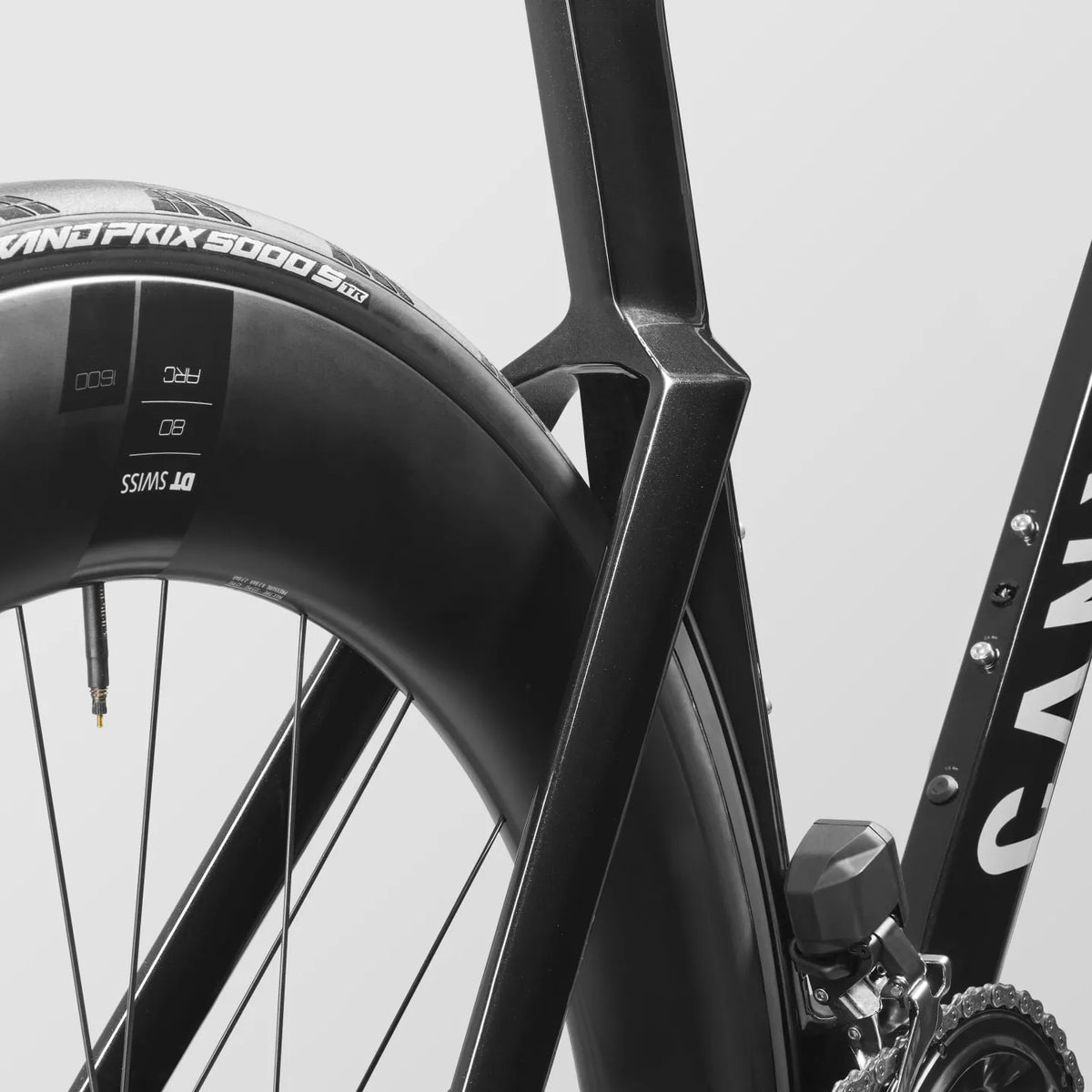

Race-ready tri bike at an unbeatable pricepoint. 65 mm DT Swiss ARC aero wheels. Shimano 105 Di2 with 4iiii power meter.

View full details

Size Chart

Speedmax CF 7 Di2 - Frame Geometry

Frame Size	Body Height (cm)	Seat Height (mm)	Seat Tube Length (mm)	Top Tube Length (mm)	Head Tube Length (mm)	Head Tube Angle (°)	Seat Tube Angle (°)	Chainstay Length (mm)	Wheel Base (mm)	Stack (mm)	Reach (mm)	Stand-over Height (mm)	Bottom Bracket Offset (mm)	Cockpit Dimensions (mm)	Crank Length (mm)	Chainring Size	Maximum Seat Post Insertion Depth (mm)	Minimum Seat Post Insertion Depth (mm)	Wheel Size (")	Disc Size (mm)	Rim height (mm)
XS	≤ 166	613 - 733	480	454	113	72	80.5	410	956	482	374	754	52	80-410	165	52/36	200	80	27.5	140 / 140	50
S	166 - 174	651 - 771	518	489	115	73	80.5	420	988	519	402	791	72	80-410	165	52/36	200	80	28	160 / 140	80
L	186 - 196	730 - 880	577	540	176	73	80.5	420	1.046	578	443	849	72	95-410	170	52/36	230	80	28	160 / 140	80
XL	≥ 196	760 - 910	607	570	207	73	80.5	420	1.081	608	468	879	72	95-410	172.5	52/36	230	80	28	160 / 160	80
M	174 - 186	696 - 846	543	511	140	73	80.5	420	1.014	544	420	815	72	95-410	170	52/36	230	80	28	160 / 140	80
