Canyon Aeroad CF SLX 7 Di2 Road Bike

$1,099.78 USD

~~$1,379.49 USD~~ $1,099.78 USD

Sale Sold out

Size: 2XS 2XS XS S M L XL 2XL

Color: Crystal White

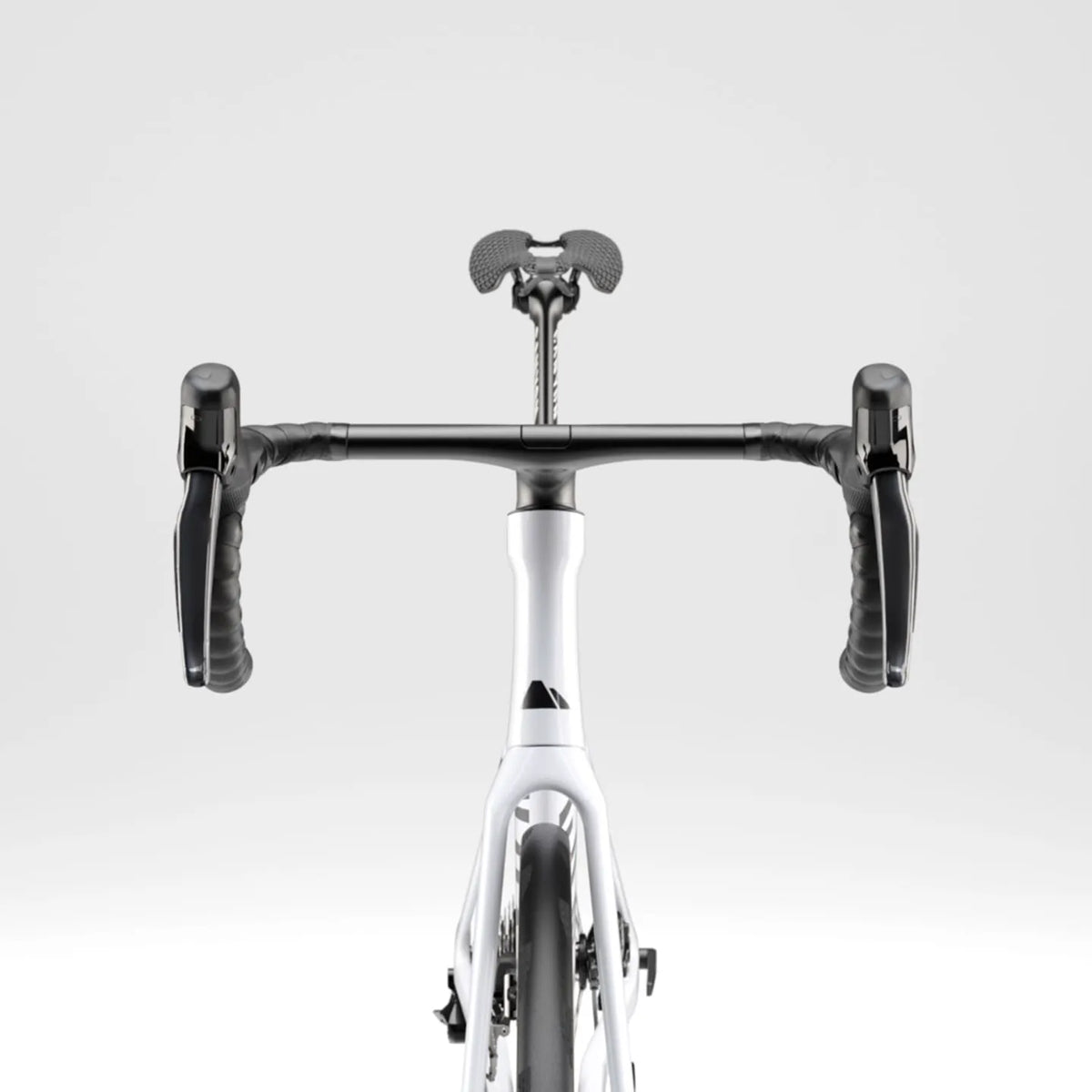

Fastest frame design in the peloton. Unmatched race pedigree from Aeroad CFR. Shimano 105 Di2 groupset with 4iiii power meter. 65 mm DT Swiss ARC 1600 carbon wheels. PACE Technology: fast cockpit adjustments.

View full details

Size Chart

Aeroad CF SLX 7 Di2 - Frame Geometry

Frame Size	Body Height (cm)	Seat Height (mm)	Seat Tube Length (mm)	Top Tube Length (mm)	Head Tube Length (mm)	Head Tube Angle (°)	Seat Tube Angle (°)	Chainstay Length (mm)	Wheel Base (mm)	Stack (mm)	Reach (mm)	Stand-over Height (mm)	Bottom Bracket Offset (mm)	Effective Stack (mm)	Effective Reach (mm)	Spacer (mm)	Cockpit Dimensions (mm)	Crank Length (mm)	Chainring Size	Maximum Seat Post Insertion Depth (mm)	Minimum Seat Post Insertion Depth (mm)	Wheel Size (")	Disc Size (mm)	Rim height (mm)
2XS	≤ 166	623 - 698	441	520	88	70	73.5	410	975	498	372	720	70	587	517	20	80 - [390-440]	160	52/36	141	66	28	140 / 140	65
S	172 - 178	684 - 784	501	549	121	72.8	73.5	410	982	539	390	775	70	622	549	20	90 - [390-440]	165	52/36	166	66	28	160 / 140	65
M	178 - 184	714 - 814	531	559	142	73.25	73.5	410	988	560	393	801	70	642	563	20	100 - [390-440]	165	52/36	166	66	28	160 / 140	65
XS	166 - 172	654 - 754	471	532	107	71.2	73.5	410	979	520	378	748	70	608	535	20	90 - [390-440]	160	52/36	166	66	28	140 / 140	65
XL	190 - 196	774 - 874	591	598	188	73.5	73.5	415	1.029	606	419	851	70	688	598	20	110 - [390-440]	170	52/36	166	66	28	160 / 160	65
L	184 - 190	744 - 844	561	572	162	73.3	73.5	413	1.003	580	401	828	70	663	580	20	110 - [390-440]	170	52/36	166	66	28	160 / 140	65
2XL	≥ 196	804 - 904	621	613	206	73.8	73.5	415	1.042	624	429	874	70	706	619	20	120 - [390-440]	170	52/36	166	66	28	160 / 160	65
