Neuron 5

$549.78 USD

~~$832.74 USD~~ $549.78 USD

Sale Sold out

Size: XS XS S M L XL

Color: Aloe

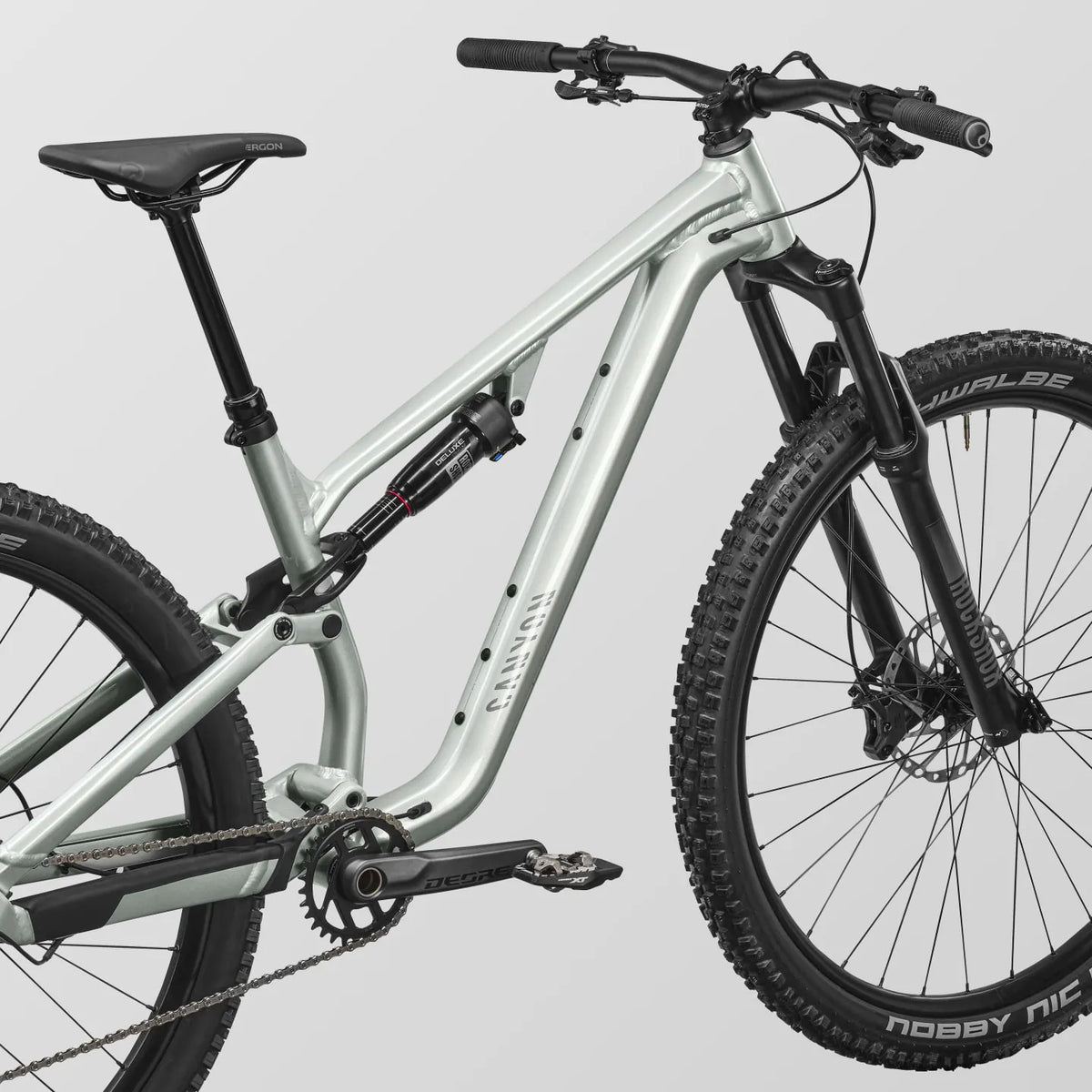

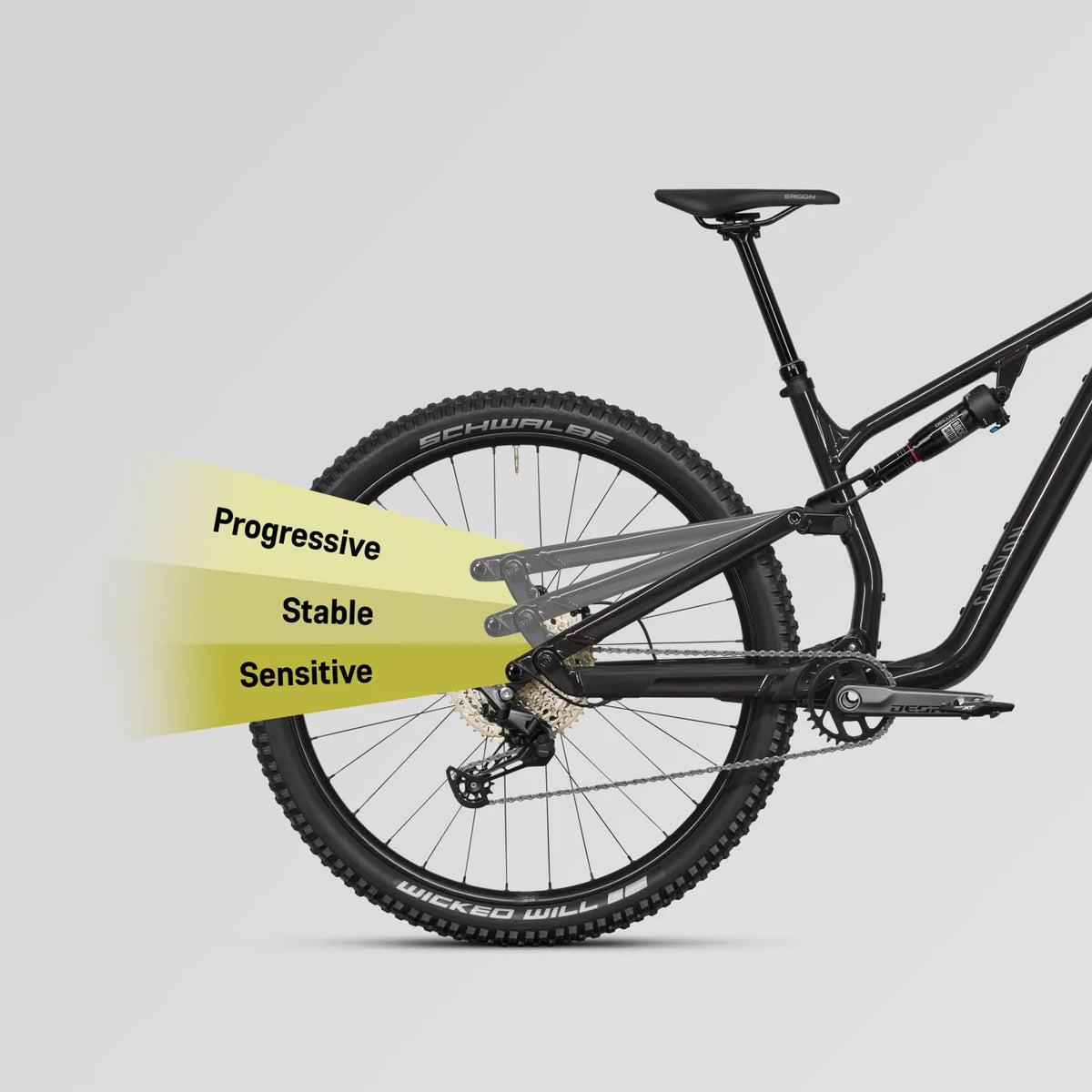

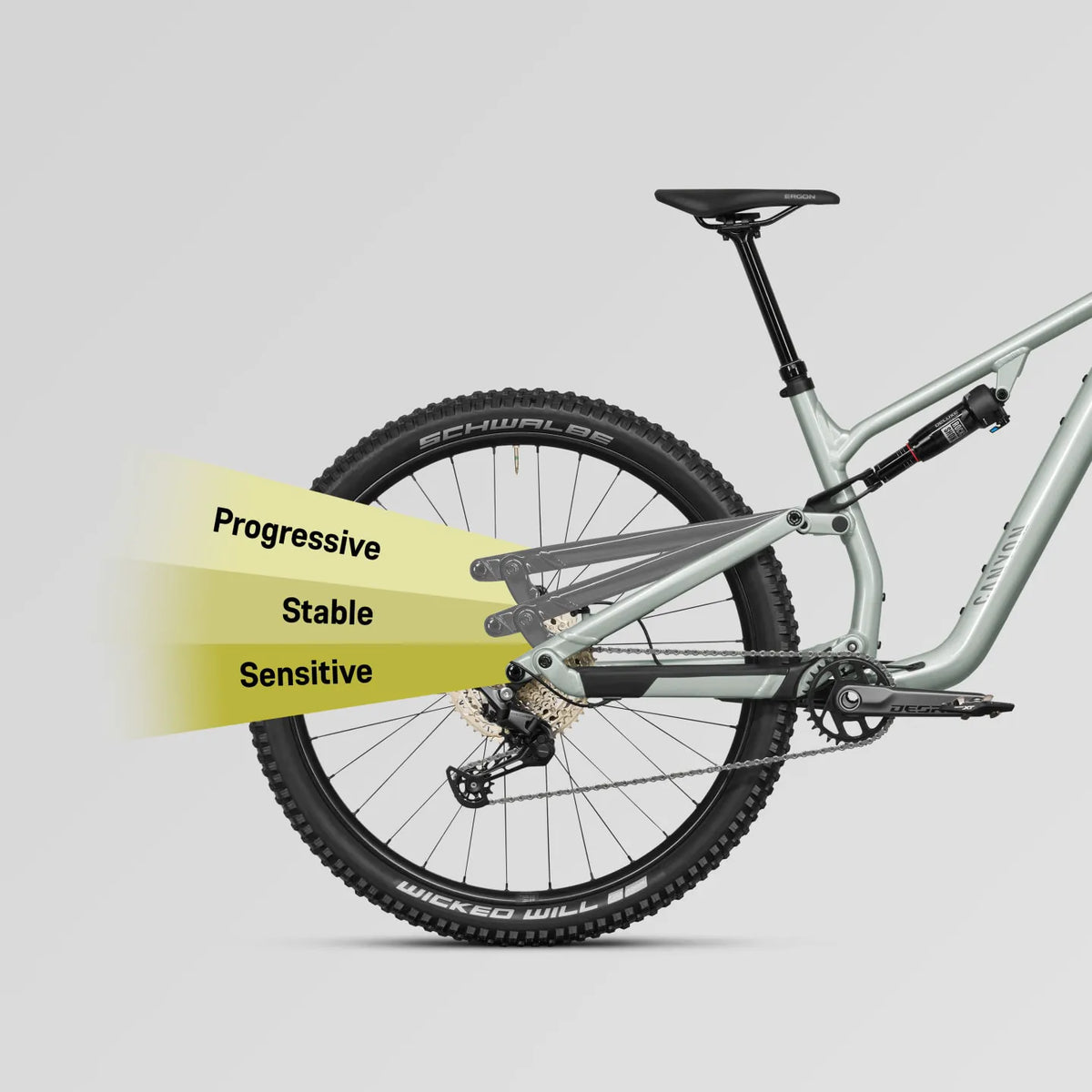

Our best-value Neuron trail bike. Proven geometry for fun, intuitive handling. Trail-tuned suspension balances climbs and descents. RockShox Deluxe Select+ delivers comfort and control. Proven Deore shifting and powerful 4-piston brakes. Adventure awaits Everyday escapes Define your own adventure with an all-rounder that was built to escape. Choose balanced geometry, efficient performance, and a durable frame. A Welsh epic See how Vedangi Kulkarni plotted her adventure across North Wales on singletrack trails and gravel paths with her Neuron. Learn more

View full details

Size Chart

Neuron 5 - Frame Geometry

Frame Size	Body Height (cm)	Seat Height (mm)	Seat Tube Length (mm)	Top Tube Length (mm)	Head Tube Length (mm)	Head Tube Angle (°)	Seat Tube Angle (°)	Chainstay Length (mm)	Wheel Base (mm)	Stack (mm)	Reach (mm)	Stand-over Height (mm)	Bottom Bracket Offset (mm)	Spacer (mm)	Crank Length (mm)	Chainring Size	Maximum Seat Post Insertion Depth (mm)	Minimum Seat Post Insertion Depth (mm)	Wheel Size (")	Disc Size (mm)	Fitting Length (mm)	Stem Length (mm)
XL	≥ 192	767 - 966	500	674	143	66	76	440	1.271	656	510	772	38	15	175	30	279	80	29	180 / 180	210X50	45
XS	≤ 166	612 - 766	390	556	90	66	76	430	1.139	587	410	756	18	15	165	30	234	80	27.5	180 / 180	190X45	45
S	166 - 175	637 - 816	390	579	100	66	76	430	1.164	596	430	760	18	15	170	30	259	80	27.5	180 / 180	190X45	45
M	175 - 183	692 - 891	425	611	110	66	76	440	1.203	626	455	760	38	15	170	30	279	80	29	180 / 180	210X50	45
L	183 - 192	727 - 926	460	639	125	66	76	440	1.234	639	480	766	38	15	175	30	279	80	29	180 / 180	210X50	45
