Canyon Ultimate CF SLX 8 AXS Road Bike

$1,319.78 USD

~~$1,603.85 USD~~ $1,319.78 USD

Sale Sold out

Size: 2XS 2XS XS S M L XL 2XL

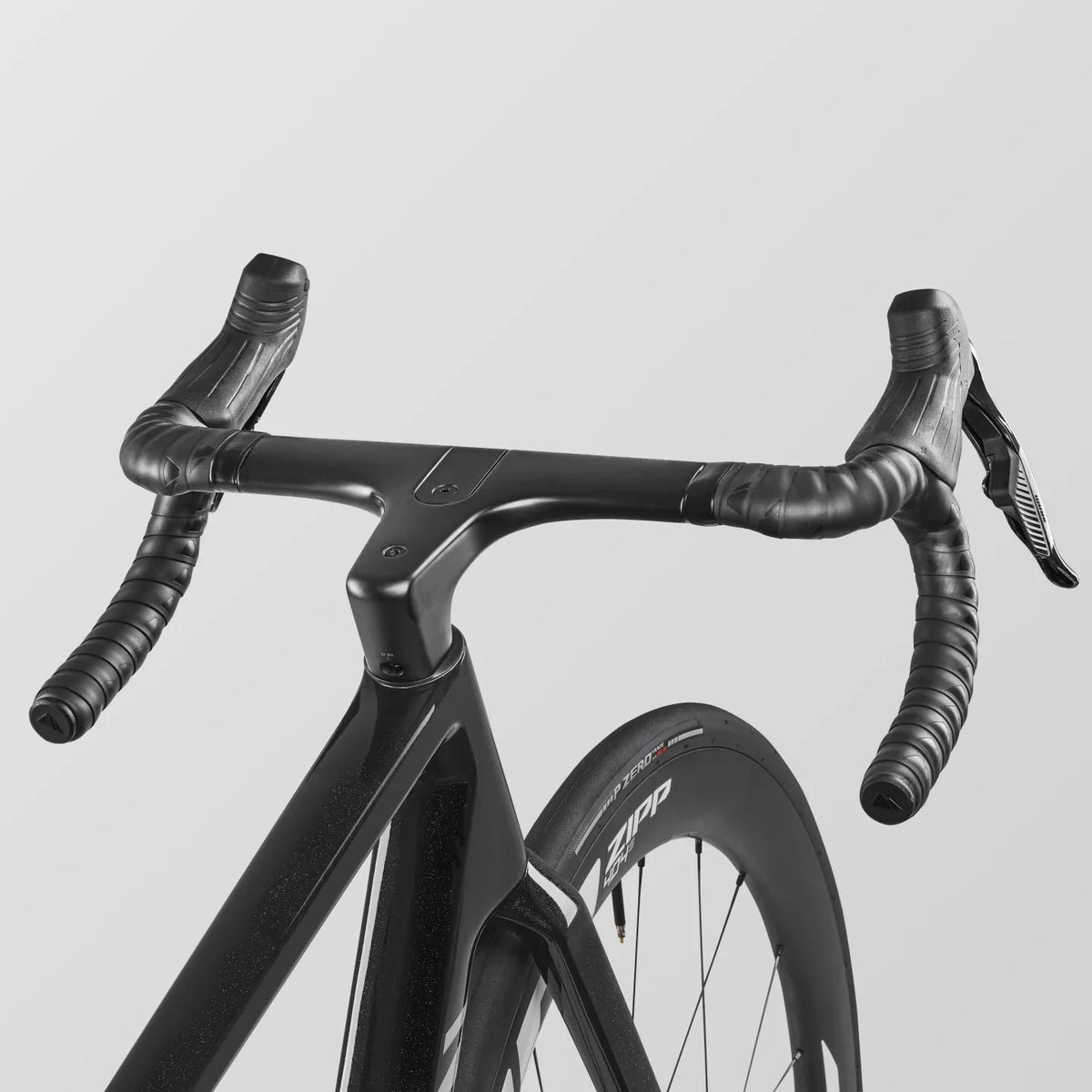

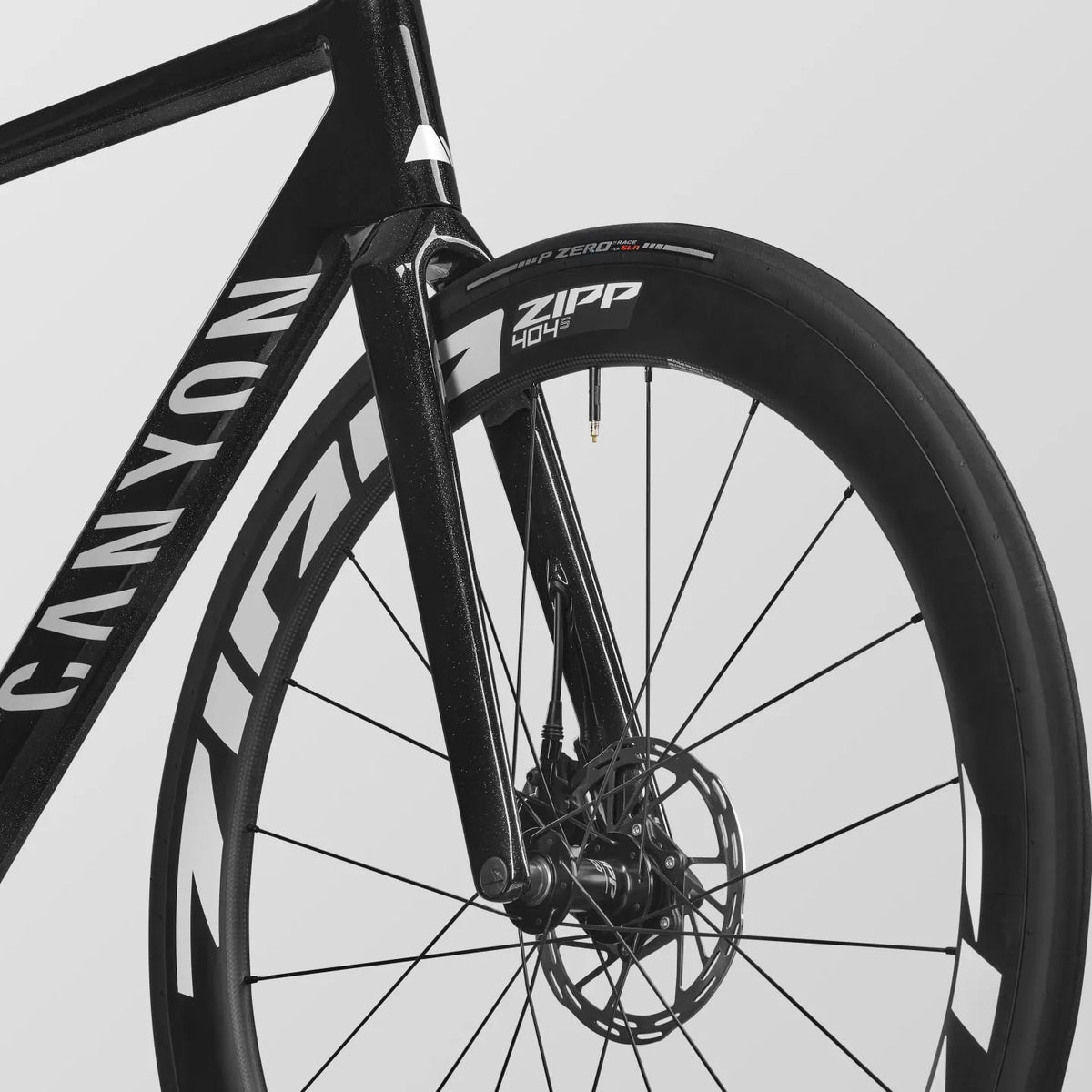

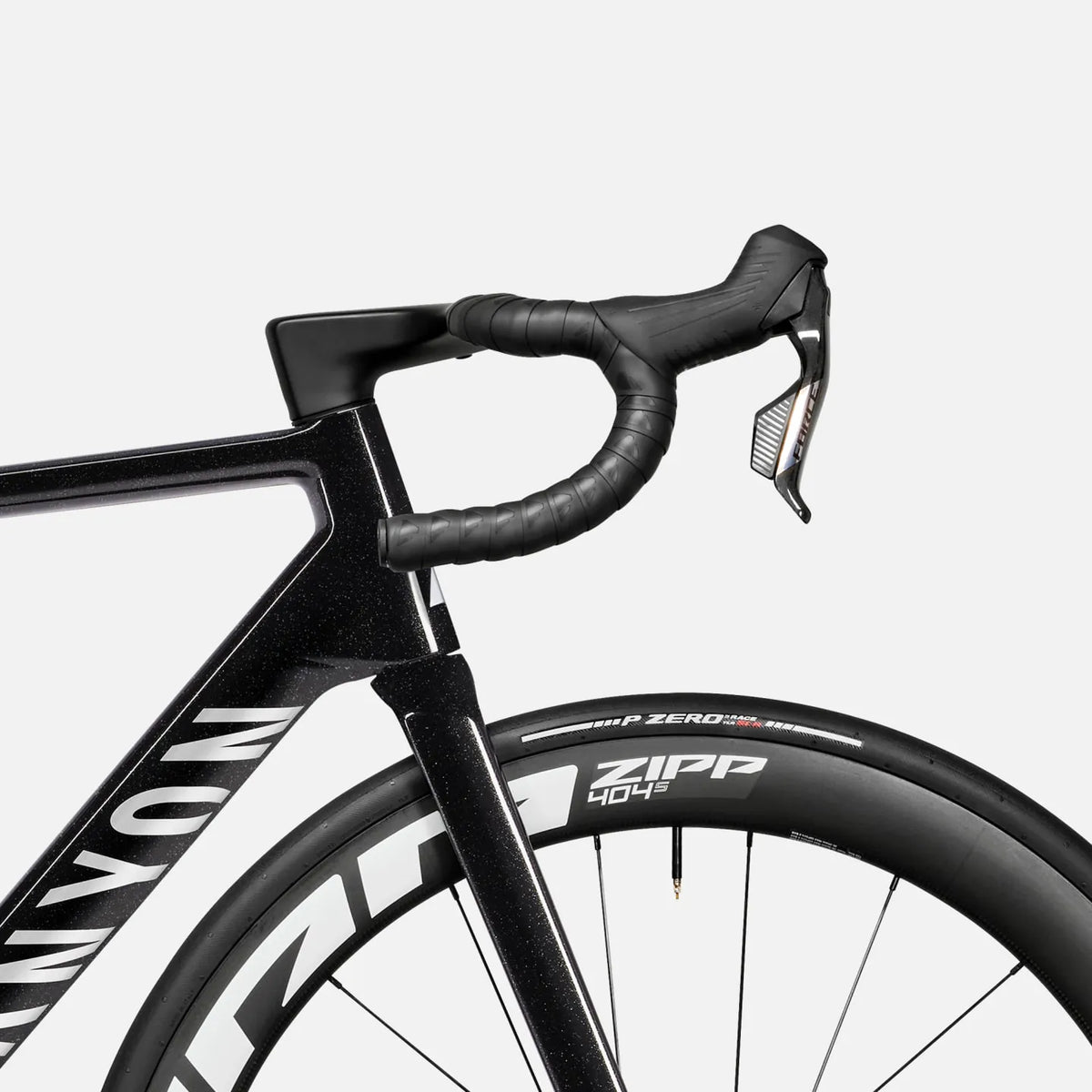

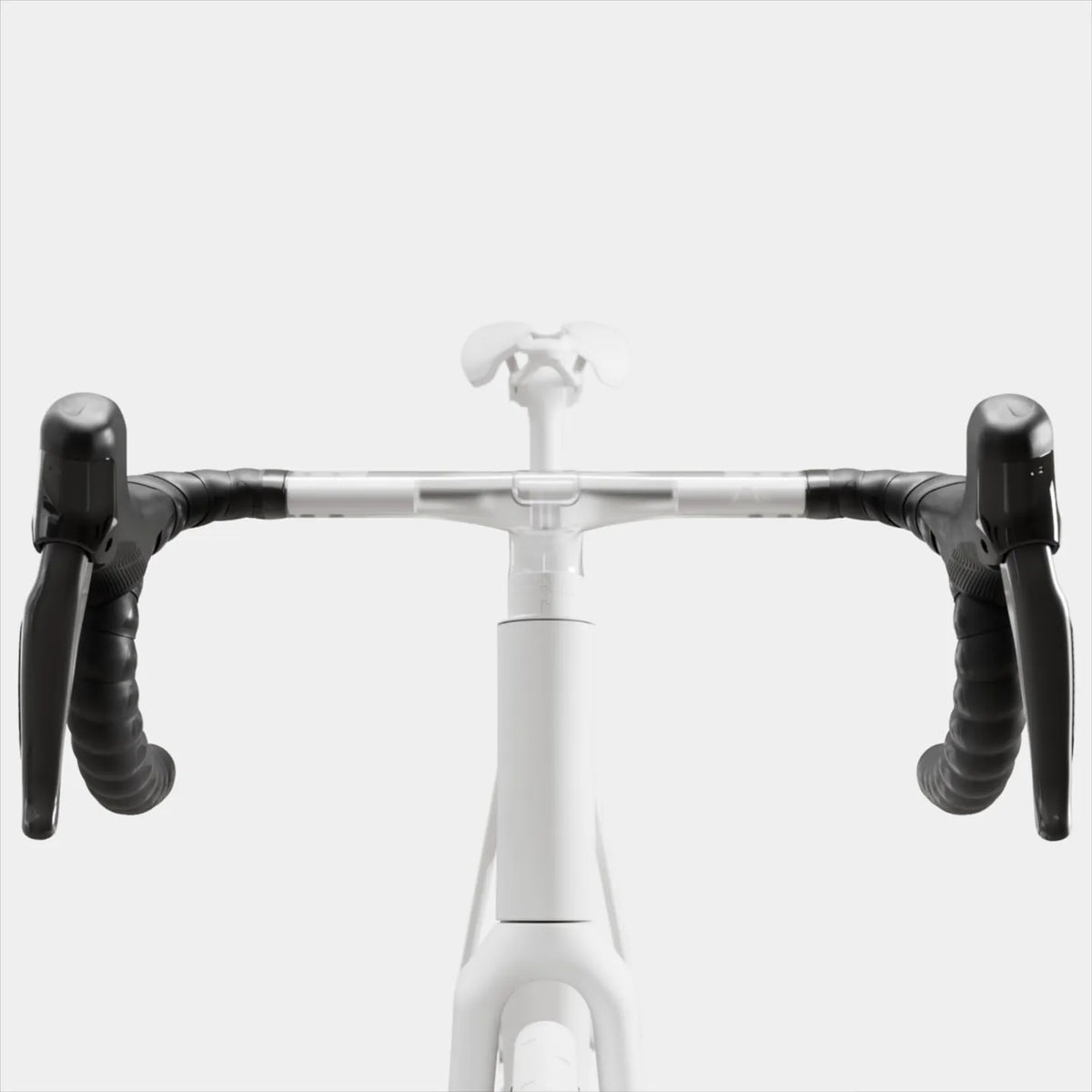

Best-in-class lightweight SLX carbon frame. Signature Ultimate responsiveness. PACE Technology: simple cockpit adjustments. SRAM Force AXS wireless shifting with power meter. 50 mm Zipp carbon wheels.

View full details

Size Chart

Ultimate CF SLX 8 AXS - Frame Geometry

Frame Size	Body Height (cm)	Seat Height (mm)	Seat Tube Length (mm)	Top Tube Length (mm)	Head Tube Length (mm)	Head Tube Angle (°)	Seat Tube Angle (°)	Chainstay Length (mm)	Wheel Base (mm)	Stack (mm)	Reach (mm)	Stand-over Height (mm)	Bottom Bracket Offset (mm)	Effective Stack (mm)	Effective Reach (mm)	Spacer (mm)	Cockpit Dimensions (mm)	Crank Length (mm)	Chainring Size	Maximum Seat Post Insertion Depth (mm)	Minimum Seat Post Insertion Depth (mm)	Wheel Size (")	Disc Size (mm)	Rim height (mm)
2XS	≤ 166	622 - 722	420	516	88	70	73.5	410	975	498	372	720	73	587	517	20	80 - [390-440]	160	50/37	195	95	28	140 / 140	50
XS	166 - 172	652 - 752	450	529	107	71.2	73.5	410	979	520	378	748	73	607	535	20	90 - [390-440]	160	50/37	195	95	28	140 / 140	50
S	172 - 178	682 - 782	480	546	121	72.8	73.5	410	982	539	390	775	73	622	548	20	90 - [390-440]	165	50/37	195	95	28	160 / 140	50
M	178 - 184	712 - 812	510	555	142	73.25	73.5	410	988	560	393	801	73	642	563	20	100 - [390-440]	165	50/37	195	95	28	160 / 140	50
L	184 - 190	742 - 842	540	569	162	73.3	73.5	413	1.003	580	401	828	73	663	580	20	110 - [390-440]	170	50/37	195	95	28	160 / 140	50
XL	190 - 196	772 - 872	570	594	188	73.5	73.5	415	1.029	606	419	851	73	688	598	20	110 - [390-440]	170	50/37	195	95	28	160 / 160	50
2XL	≥ 196	802 - 902	600	609	206	73.8	73.5	415	1.042	624	429	874	73	706	619	20	120 - [390-440]	170	50/37	195	95	28	160 / 160	50
